Martindale PC15250 Phase Rotation Indicator

Martindale PC15250 Phase Rotation Indicator

£0.00 ex. VAT
£0.00 inc. VAT
Information

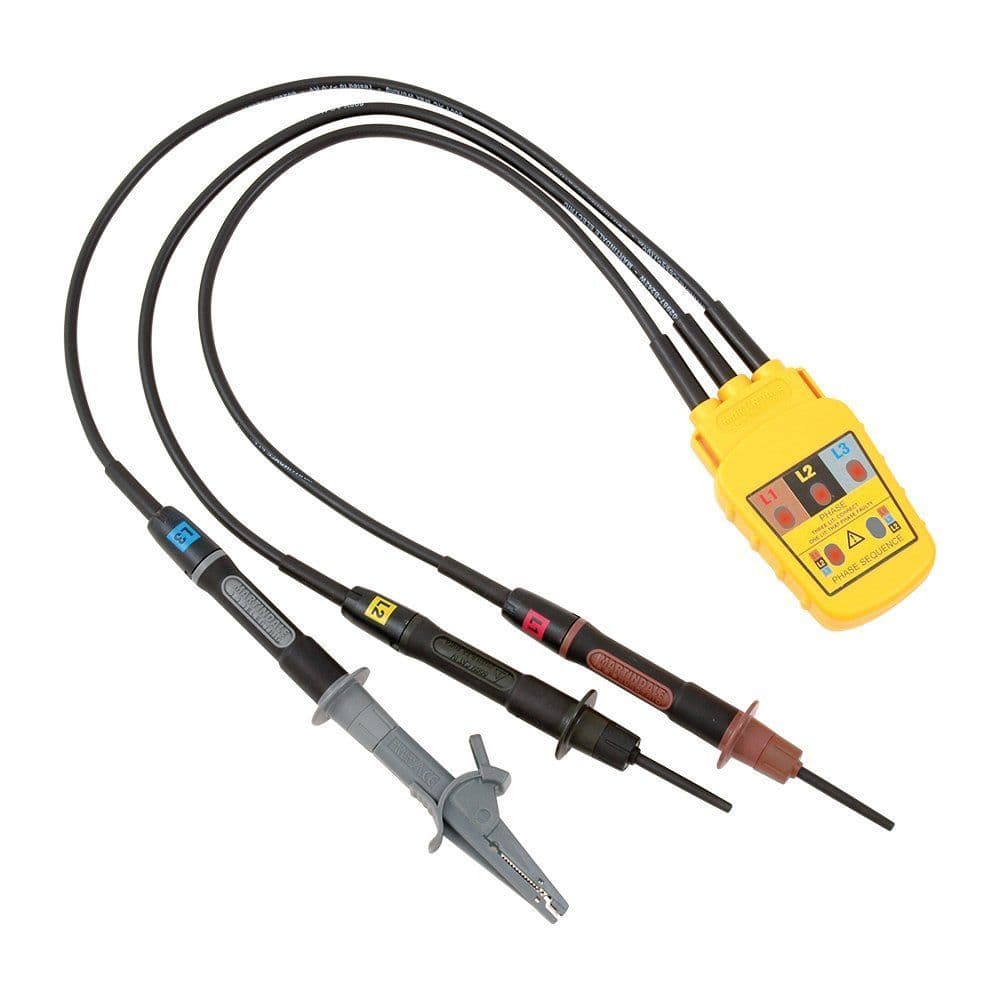

Martindale PC15250 Phase Rotation Indicator

  • Bright LED indication of live phases
  • Clear and simple display of direction of phase rotation
  • Easy identification of faulty lines
  • No batteries required
  • Retractable probe shrouds to GS38

CAT IV 600V

Quickly and simply prove the presence of all three live phases (or identify which are faulty) and show the sequence of phase rotation when all three phases are confirmed as present.

The PC15250 gives a fast, effective, battery free method of identifying unmarked cables and ensures that 3-phase outlets and machines are wired correctly.

The retractable GS38 probe shrouds give a choice between long exposed tips, for reaching difficult to access contacts, and shorter tips for increased safety.

Specifications

For use on systems from 50V to 600V phase to phase, 40Hz to 60Hz.
Operating temperature -10°C to 55°C
Overvoltage CAT IV/600V
Complies with GS38 and BS EN 61557-7
Weight 354g approx.
Dimensions 116 x 69 x 25mm
Connections one integral fused crocodile clip & two integral fused probes with retractable shrouds
Includes manual
